Description

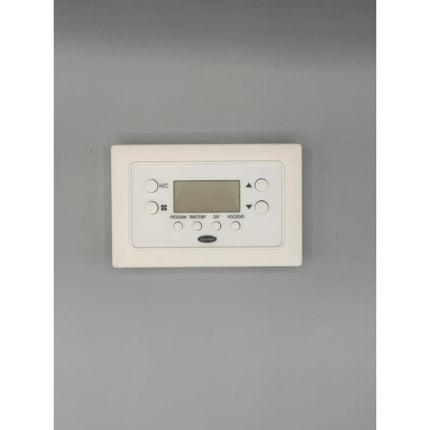

The CARRIER TB-NHP01-A is a non-programmable thermostat designed for heat pump systems. This unit supports two heating stages and one cooling stage. Users can select Off, Cool, and Heat modes with a simple push button. The thermostat features a one point four inch digital LCD for temperature display, available in Fahrenheit or Celsius. It operates on a twenty-four VAC power source or with two AA alkaline batteries, which are included. The device's non-volatile memory keeps settings during power outages, ensuring consistent performance. It is designed for horizontal J-box mounting and maintains a temperature accuracy of plus or minus two degrees Fahrenheit within a range of fifty degrees Fahrenheit to ninety degrees Fahrenheit.
Supports two heating and one cooling stage for heat pump systems.
Displays temperature in Fahrenheit or Celsius on a one point four inch LCD.
Retains settings during outages with non-volatile memory.
Product Highlights
This thermostat is ideal for HVAC professionals looking for reliable temperature control in heat pump systems.
Product Information
Standard Information
Device Type: Non-Programmable Thermostat
Display Size: 1.4 inches
Technical Specifications
HVAC System Compatibility: Heat Pump
Heating Stages: 2
Cooling Stages: 1
Input Voltage (AC): 24 VAC
Batteries: 2 AA Alkaline
Dimensions: 4.3 x 2.7 x 0.9 inches
Weight: 0.2 lb
Operating Temperature: 32°F to 104°F
Accuracy: +/- 2°F
