Description

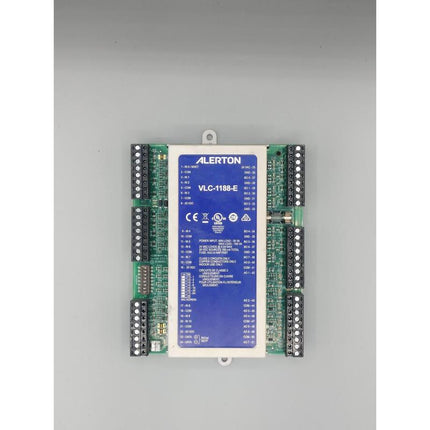

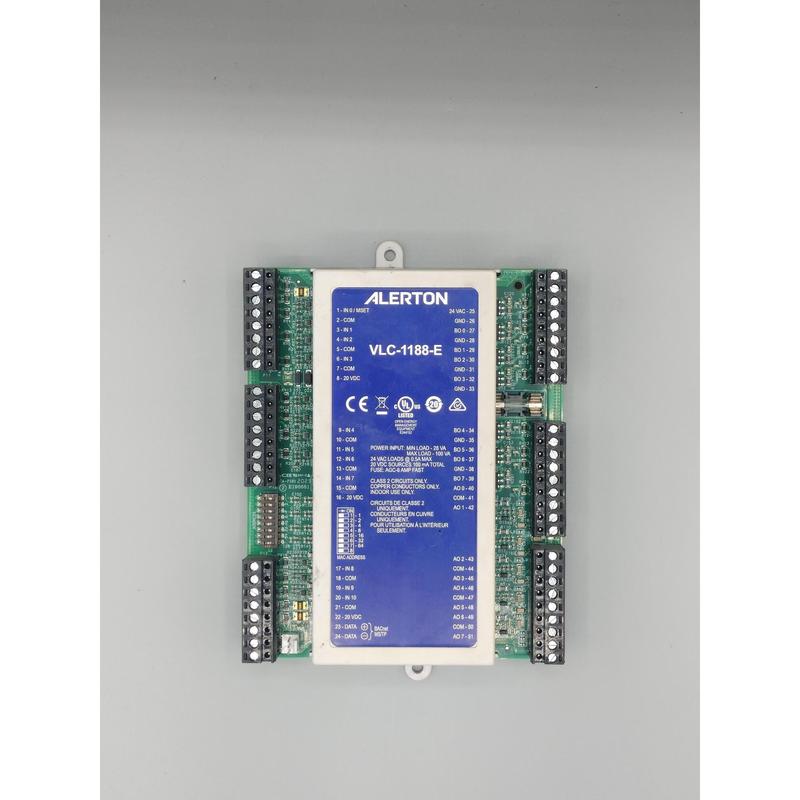

The Alerton VisualLogic VLC-1188-E is a versatile, BACnet-compliant, fully programmable field controller designed for central plant systems, air handling units, clean rooms, fume hoods, large terminal units, and similar control and process equipment. As a native BACnet controller, it integrates seamlessly with your BACnet system, communicating at up to 115 Kbps on a BACnet MS/TP LAN. The VLC-1188-E supports the Alerton Microtouch™, as well as the BACtalk Microset, Microset II, and Microset 4 intelligent wall sensors, which offer convenient data display, setpoint adjustment, and technician access to equipment setup parameters. All VLC-1188-E control logic is programmed using Alerton's easy-to learn graphical programming language, VisualLogic. Programming and setup data is stored in non-volatile flash memory, ensuring stable and reliable operation. High-resolution 16-bit universal inputs are auto-selectable for thermistor, dry contact, pulse, 0-5 V, 0-10 V, or 4-20 mA. High-resolution 16-bit analog outputs are auto- selectable for 0-10 V or 0-20 mA.. Alerton. Honeywell. VLC-1188-E.
