Description
Details

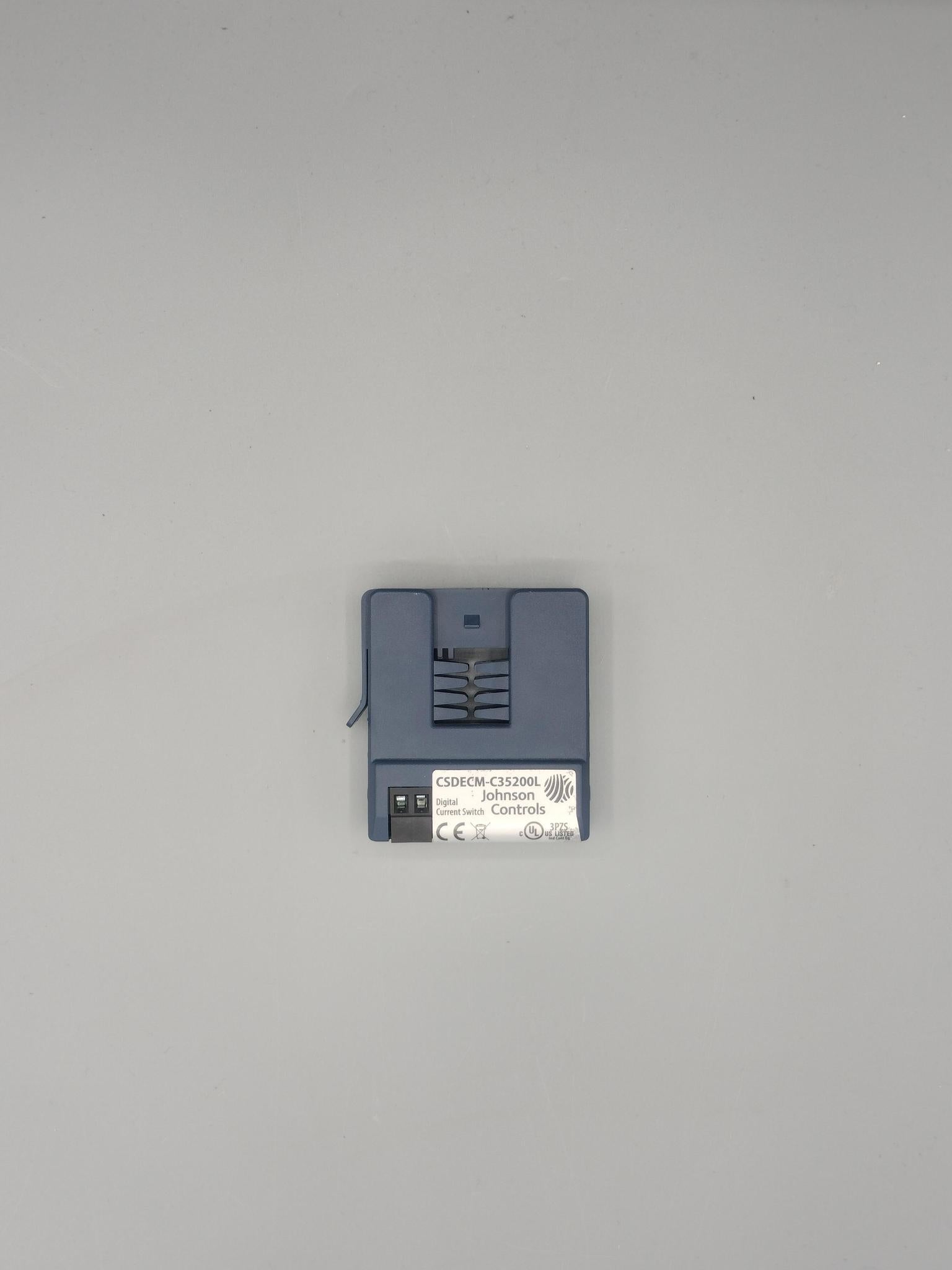

Item
Current Sensor Relay
Input or Control Voltage
Self Powered
AC Contact Rating - Relay
1.00A @ 30V
DC Contact Rating - Relay
1.00A @ 30V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
Sensing Amp Range
0.35 to 200.00A
Trip Point
0.35 A
Trip Delay
None
Core Type - Relay
Split
Contact Amps
0.50A
Core Type
Split
Contact Form
SPST-NO
Mounting
Surface
Sensor Opening
0.75 in
Max. Inrush Current
200 A
Status Indicator
No Indicator
Type of Output
Solid State
Electrical Connection
Terminal Strip
Item - Relay
Current Sensing Relay
Input Voltage
Self Powered
Contact Rating (AC)
10A at 125 VAC
Mounting Style
Surface
Trip Point Type
Fixed
Frequency
50/60 Hz
Monitored Parameters
Overcurrent, Undercurrent
Weight
0.15 lb
Standards
CE Certified, UL Listed
Maximum Switching Voltage
125V AC
Wire Gauge
14 AWG, 22 AWG
Maximum Operating Temperature
140 Degrees F
Contact Rating (DC)
1 A @ 30V
Current Rating
200 A
Minimum Operating Temperature
5 Degrees F
Operating Current
200 A
Adjustment Method
Switch
