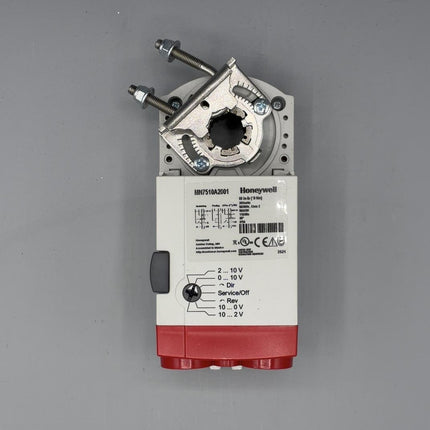

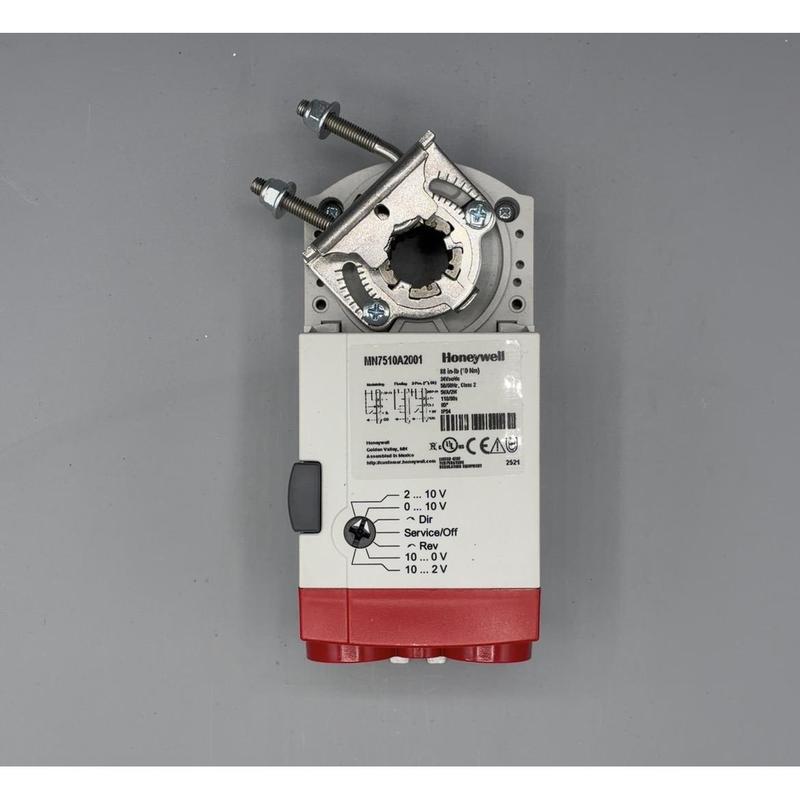

Description: Direct Coupled, General Purpose, Non-Spring Return Actuator
Actuator Type: Damper, Valve
Application Type: HVAC
Fail Safe Mode: Non-Spring Return
Control Signal: 2 position, Floating
Supply Voltage: 24 Vac +20%, -15%, 24 Vdc
External Auxiliary Switches Available: Yes, SSW2-1M
Shaft Adapter Type: U-bolt clamp
Manual Operation: Declutch mechanism
Mounting: Direct Coupled
Frequency: 60 Hz, 50 Hz
Rotational Stroke: 95 +/- 3 degrees
Rotation To Open: By Switch
Dual Integral Adj. Stops (3 degree increments)
Rotational Stroke Adjustment: Dual Integral Adj. Stops (3 degree increments)
Compatible Damper Shafts: 1/4 to 1/2 in. square or 3/8 to 5/8 in. round
Power Consumption: 5 VA
Temperature Range: -5 F to +140 F
Environmental Rating: NEMA2
